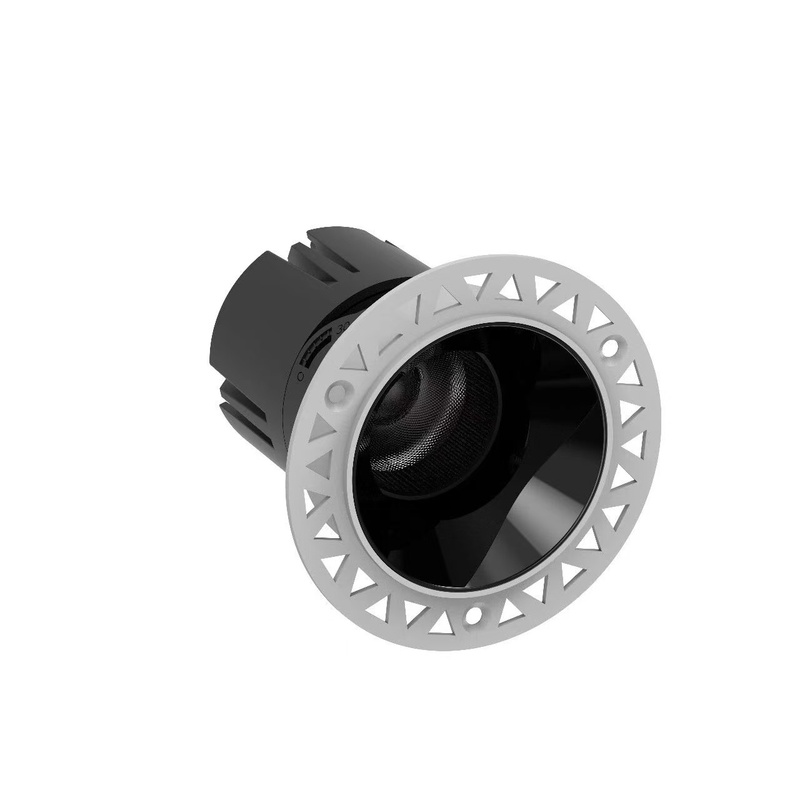

Product front view

BACK

model

YZS-YM-D120-18W

product packaging

power

7/12/18W

product name

Downlight

Carton size

not have

LED model

COB

Light bulbs

Bridgelux

Quality Assurance

3

YEAR

application environment

Embedded installation

product function

power rating

3-18watts

1, high luminous efficiency, low light decay, long life;

2. The aluminum substrate has low heat and high power of a single lamp

3. Constant voltage lamp bead, stable voltage

4. Integrated design, simple and fast construction and installation, can directly replace the traditional lamp grille;

5, choose high quality aluminum material, surface spray paint treatment to prevent rust

6. Power-on effect diagram:

product size

75mm（3-7w）100mm（7-12w）120mm（12-18w）

Light plate material

all-aluminum

classification of waterproof

IP20

surface preparation

/

Angle of light emission

15/24/36/55°±10%

Environmental tin points

ROHS

Test specifications

Temperature resistance test√

temperature test √

insulation test √

Test the grounding resistance x

Leakage current test

pack test √

IP horizontal checkout x

Electrical specifications

LED drivers

split-type

Rated input voltage

AC220V / DC36V

Driver

No DRIVER

Rated output power (model)

3-18W±1W

Rated input current (typical)

DC36V*(1±10%)

aiming

illuminant

Bridgelux

colour temperature

2700/3000/4000/65000K

CRI

≥92-95

power factor

self-made

Light flux (typical values)

100LM/w ±10%

Light efficiency (typical)

≥120 lm/W

product life

30000H (16HX365X2)

ambient temperature

-5℃~45℃ <80% Rh

storage temperature

-5℃~55℃ <80% Rh

Light attenuation assessment

30000H<10%
